SmartAnthill 2.0 Overall Architecture


SmartAnthill is an open IoT system which allows easy control over multiple microcontroller-powered devices, creating a home- or office-wide heterogeneous network out of these devices.

SmartAnthill system can be pretty much anything: from a system to control railway network model to an office-wide heating control and security system. As an open system, SmartAnthill can integrate together a wide range of devices beginning from embedded development boards and ending with off-the-shelf sensors and actuators. They can be connected via very different communication means - from wired (currently Serial, with CAN bus and Ethernet planned soon) to wireless (currently IEEE 802.15.4, with low-cost RF, Bluetooth Smart, ZigBee and WiFi planned soon).

All SmartAnthill devices within a system are controlled from the one place (such as PC or credit-card sized computer Raspberry Pi, BeagleBoard or CubieBoard), with an optional access via Internet.

From programming point of view, SmartAnthill provides a clear separation between microcontroller programming (such as “how to get temperature from this sensor”) and system integration logic (such as “how we should heat this particular house to reduce the heating bill”). Microcontroller programming usually requires C/asm programming and C/asm programs are notoriously difficult to customize. SmartAnthill allows you to customise device with pre-defined capabilities via GUI and generate compatible firmware which will be flashed to device automatically. On the other hand, system integration logic needs to be highly customizable for needs and properties of specific house or office, but within SmartAnthill it can be done via rich suite of development instruments: Generic Protocols (HTTP, Sockets, WebSokets), High Level API (REST API) and SDK for popular languages, which allow for easy development and customization.

SmartAnthill 2.0 represents further work on SmartAnthill 1.0, which was designed solely by Ivan Kravets, an author of PlatformIO. Improvements in SmartAnthill 2.0 cover several areas, from introducing security, to support of protocols such as ZigBee and improvements aimed at reducing energy consumption. SmartAnthill 2.0 is not intended to be compatible with SmartAnthill 1.0.

Sales pitch (not to be taken seriously)

  • This ... SmartAnthill thing... What does it do?

  • Sir, better you should ask “What doesn’t it do?”

    It crypts, flips, scripts, and strips,
    It loops, groups, hooks, and schnooks,
    It chases, races, faces, and places!

    No home or maximum security prison should be without one!

    With SmartAnthill, each of your devices will get their very own personal IP address (whatever that is)! And for those low-income devices which were able to save only limited amount of RAM and cannot afford running an IP stack, SmartAnthill will simulate an IP address, so nobody from outside world will be able to tell the difference! It is an ultimate tool in keeping your devices’ self-esteem, even when they cannot afford the latest greatest technology through no fault of their own!

    In addition to being an indispensable motivation vehicle to keep your devices from becoming apathetic and irresponsive, SmartAnthill is also an ultimate engine to keep your devices in line. Yes, your very own SmartAnthill keeps a comprehensive secret dossier on each and every of your devices, monitors their behaviour, and takes corrective measures whenever necessary! And yes, you can plausibly deny any knowledge of SmartAnthill’s actions if you feel like it, too!

    But that’s not all! SmartAnthill will go to great lengths to make sure that your devices don’t misuse any watts and milliamp-hours you give them! It will enable suitable devices to run a year or even more when being fed just once! No energy-saving trick in the book is left without SmartAnthill’s attention - from sleep to hibernation, from minimizing data being transmitted to minimizing time when RF oscillator is on (whatever that is)!

    What else you, a true manager of your house, can possibly want? You’ll get your devices motivated, under tight control, using only very minimum amount of food, and with plausible deniability on top! What are you thinking about? Download your very own SmartAnthill today, and we’ll provide 50% discount from your DIY setup price! That’s right, if you install SmartAnthill today, you’ll be able to pay yourself twice less for setting SmartAnthill up!


SmartAnthill aims to create a viable system of control for the Internet of Things (IoT) devices in home and office environments. More secure and more risky environments (such as industrial control, military, etc.) are currently out of scope. Due to SmartAnthill roots in hardware hobbyist movement, special attention is to be paid for hobbyist needs.


SmartAnthill is built around the following requirements. They follow from the aims and generally are not negotiable.

  1. Low Cost. In home/office environments SmartAnthill should aim for a single device (such as sensor) to be in the range of $10-$20. Rationale: higher costs will deter acceptance greatly.
  2. Support for Devices with Limited Resources. Many of devices and MPUs aimed to be used with SmartAnthill are very limited in their resources (which is closely related to their low cost). Currently, minimal MPU configuration which minimal SmartAnthill aims to run on, is as low as 512 bytes RAM, 16K bytes PROM (to store the program) and 256 bytes EEPROM. [TODO: think about number of rewrites in EEPROM, incl. optimization]
  3. Wireless Support. SmartAnthill needs to support wireless technologies. Wired support is optional. Rationale: without wireless devices, acceptance in home environments is expected to be very low.
  4. Support for Heterogeneous Systems. SmartAnthill should allow to create systems consisting of devices connected via different means. ZigBee and RF technologies are of the particular interest.
  5. System Integration should not require asm or C programming. Most MPUs require C or asm programming. This is ok, as long as such programming can be done once per device type and doesn’t need to be repeated when the system integrator needs to adjust system behavior. To achieve it, SmartAnthill should provide clear separation between device developer and system integrator, and system integration should not require C or asm programming skills.
  6. Energy Efficiency. SmartAnthill should aim to achieve best energy efficiency possible. In particular, a wide range of SmartAnthill sensors should be able to run from a single ‘tablet’-size battery for at least a year (more is better).
  7. Security. SmartAnthill should provide adequate protection given the home/office environment. In other words, SmartAnthill as such doesn’t aim to protect from NSA (or any other government agency) or from somebody who’s already obtained physical access to the system. However:
    1. protection from remote attackers (both over the Internet and present within the reach of wireless communications) is the must
    2. level of protection should be sufficient to control home/office physical security systems
    3. protection from local attackers trying to obtain physical entry requires additional physical security measures, which can be aided by SmartAnthill. For example, if the attacker gets entrance to the hardware of SmartAnthill Central Controller, SmartAnthill becomes vulnerable. However, SmartAnthill-enabled sensors may be installed to detect unauthorized entrance to the room where SmartAnthill is installed, and/or to detect unauthorized opening of the SmartAnthill Central Controller physical box, with an appropriate action taken by Central Controller before it becomes vulnerable (for example, notifying authorities).
  8. Openness. All core SmartAnthill technologies should be open. SmartAnthill protocols are intended to be published, and any device compliant with these protocols should be able to interoperate with other compliant devices. SmartAnthill project will provide a reference software stack as an open source code, which will be distributed under GPL v2 [TODO:decide] license.
    1. Openness of SmartAnthill does not mean that all SmartAnthill devices should use open-source software. Any device, whether using open- or closed-source software, is welcome as long as it complies with published SmartAnthill protocols.
    2. Openness of SmartAnthill does not mean that SmartAnthill devices are not allowed to use existing proprietary protocols as a transport.
    3. Position on patents. SmartAnthill Core MUST use patent-free technologies wherever possible. Support for patented technologies as a transport is allowed. All SmartAnthill contributors MUST fill a form with a statement on their knowledge on patents related to their contribution.
  9. Vendor and Technology Neutrality. SmartAnthill should not rely on any single technology/platform (leave alone any single vendor). All kinds of suitable technologies and platforms are welcome. Any references to a specific technology should be considered only as an example.
  10. Extensibility. Closely related to technology neutrality is extensibility. SmartAnthill should expect new technologies to emerge, and should allow them to be embraced in a non-intrusive manner. It is especially important to allow easy addition of new communication protocols, and of new devices/MPUs.
  11. Ability to Utilize Resources of More Capable Devices. Non-withstanding Requirement #2 above, it is recognized that there are some devices out there which have better capabilities than minimal capabilities. Moreover, it is recognized that share of such more capable devices is expected to grow. Therefore, as long as it is helpful to achieve any of the goals above, SmartAnthill should allow to utilize capabilities of more sophisticated devices. One example is to utilize device’s ability to sleep and wake up on timer, allowing to improve battery life greatly. Another example is to allow combining several commands into one wireless transmission, allowing to reduce amount of time wireless module needs to be turned on, which should also help improving battery life.
    1. It doesn’t mean that SmartAnthill is going to increase minimal requirements. However, if minimal requirements are exceeded by any particular device, SmartAnthill should allow to utilize those improved capabilities to improve other user-observable characteristics.
  12. Support both for mass-market devices and for hobbyist devices. While SmartAnthill is not limited to hobbyists and aims to become a widely-accepted network for controlling IoT and smart homes, it should consider hobbyists as a first-class citizens and pay attention to their needs. In particular, compatibility with existing devices and practices is to be taken seriously, as well as any feedback.

SmartAnthill Architecture

SmartAnthill Overall Architecture

Simple Topology

Simple SmartAnthill system consists of one SmartAnthill Central Controller and one or more SmartAnthill Devices (also known as “Ants”) controlled by it (see Sample SmartAnthill Single-Node System diagram above for an example topology).

SmartAnthill Central Controller is a relatively complex device (such as PC or credit-card sized computer Raspberry Pi, BeagleBoard or CubieBoard) which normally runs several pieces of software, including operating system TCP/IP stack, 3rd-party System Control Software, and SmartAnthill Core.

System Control Software

System Control Software is intended to be easily customizable according to customer needs. It can be very different, but we aim to support OpenHAB, and to support DYI programming with pretty much any programming language which can support one of the REST, WebSockets or Sockets. SmartAnthill project as such doesn’t provide control software, it is rather a service which can be used by a control software.

SmartAnthill Core

SmartAnthill Core represents a cross-platform software which is written in Python language and supports all the popular server/desktop operation systems: Mac OS X, Linux (x86 or ARM), and Windows. System requirements of SmartAnthill Core are very low for a modern server-side application:

  • < 1% CPU in IDLE mode
  • < 20Mb RAM for service/daemon
  • < 20Mb of free disk space (cross-compilers, tool chains, and firmware upload software are not included here)

More detailed information on SmartAnthill Core is provided in a separate document, SmartAnthill 2.0 Core Architecture.

API Service

API Service is responsible for supporting multiple protocols (such as REST, Websocket, or plain socket) and converting them into requests to the other parts of SmartAnthill.

Dashboard Service

Dashboard Service is responsible for providing UI for the SmartAnthill administrator. It allows to:

  • administer SmartAnthill Core (control services running, view logs etc.)
  • configure and program/”pair” SmartAnthill Devices so they can be used with specific SmartAnthill system (see Life Cycle of SmartAnthill Device below for details on configuring, programming, and “pairing”)

Device Service

Device Service provides device abstraction to the rest of SmartAnthill Core, allowing to handle different devices in a consistent manner.

Device Firmware Module

Device Firmware Module is used for SmartAnthill Hobbyist Devices (see on them below). Device Firmware Module is responsible for generating device firmware (for specific device, based on configuration entered via Dashboard), and for programming it. Device Firmware Module is implemented on top of PlatformIO.

SmartAnthill Router

SmartAnthill Router is responsible for handling so-called SmartAnthill Simple Devices (see below; in a nutshell - SmartAnthill Simple Device is not able to run it’s own IP stack).

SmartAnthill Router provides SmartAnthill Simple Devices with a virtual IP address (or more precisely - either with a separate IP address, or with a dedicated port on one of SmartAnthill Central Controller’s IP addresses). While SmartAnthill Simple Device itself knows nothing about IP, SmartAnthill Router completely encapsulates all connected SmartAnthill Simple Devices, so from the point of view of the outside world, these SmartAnthill Simple Devices are completely indistinguishable from fully-fledged SmartAnthill IP-Enabled Devices.

SmartAnthill Database (SA DB)

SmartAnthill Database (SA DB) is a database which stores all the information about SmartAnthill Devices within specific SmartAnthill System. SA DB is used by most of SmartAnthill Core components.

SmartAnthill Database is specific to the Central Controller and SHOULD NOT be shared. In SA DB, at least the following information is stored:

  • device addresses (bus-specific for Simple Devices and IPs for IP-enabled devices)
  • credentials (i.e. symmetric keys)
  • configuration (i.e. which device is connected to which pins)
  • device capabilities (i.e. amount of RAM/PROM/EEPROM available, MPU capabilities etc.)

SmartAnthill Devices

SmartAnthill Devices

TODO: Master-Slave topology!

Each SmartAnthill Device (also known as ‘Ant’) is either SmartAnthill Hobbyist Device, or a SmartAnthill Mass-Market Device. While these devices are similar, there are some differences as outlined below. In addition, in a completely different and independent dimension each SmartAnthill Device is either a Simple Device, or an IP-enabled Device.

These properties are independent of each other, so it is possible to have all four different types of devices: SmartAnthill Hobbyist Simple Device, SmartAnthill Hobbyist IP-enabled Device, SmartAnthill Mass-Market Simple Device, and SmartAnthill Mass-Market IP-enabled Device.

SmartAnthill Hobbyist Device

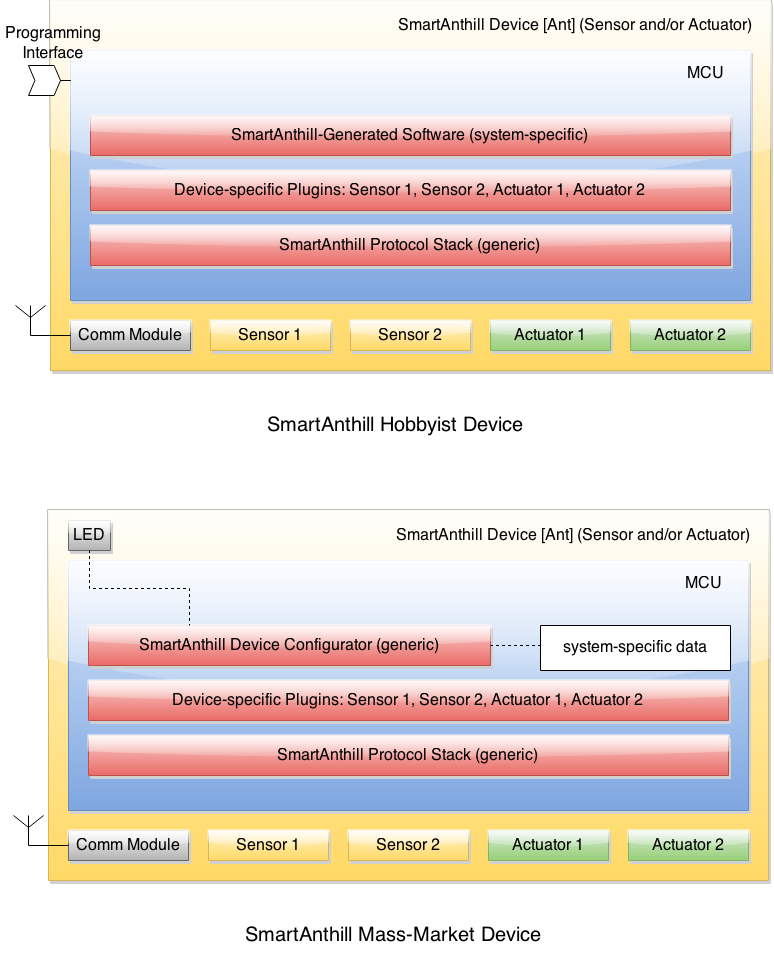

A diagram of a typical SmartAnthill Hobbyist Device is provided in section SmartAnthill Devices. SmartAnthill Hobbyist Device consists of an MCU, persistent storage (such as EEPROM or Flash), communication module, and one or more sensors and/or actuators (which are also known as ‘ant body parts’). TODO: add persistent storage to the diagram. MCU on SmartAnthill Hobbyist Device runs several layers of software:

  • SmartAnthill-Generated Software it is system-specific, i.e. it is generated for each system
  • Device-Specific Plugins for each type of sensor or actuator present
  • SmartAnthill 2.0 Protocol Stack; it is generic, i.e. it is intended to be pretty much the same for all SmartAnthill Devices. SmartAnthill 2.0 Protocol Stack uses persistent storage, in particular, to provide security guarantees.

An important part of SmartAnthill Hobbyist Device (which is absent on SmartAnthill Mass-Market Devices) is programming interface; for example, it can be some kind of SPI, UART or USB.

SmartAnthill Mass-Market Device

A diagram of a typical SmartAnthill Mass Market Device is also provided in the section SmartAnthill Devices. In addition to the components available on SmartAnthill Hobbyist Device, SmartAnthill Mass-Market Device MAY additionally include:

  • an additional LED to support Single-LED Pairing. In practice, an existing LED MAY be re-used for this purpose.

In addition, Persistent Storage on Mass-Market Devices stores System-specific Data. System-specific Data contains information such as bus-specific addresses and security keys; it is obtained during “pairing” process which is described below

MCU on SmartAnthill Mass-Market Device runs several layers of software (note the differences from SmartAnthill Hobbyist Device):

  • SmartAnthill Configurator, which is responsible for handling “pairing” process and populating system-specific data. SmartAnthill Configurator is generic.
  • Device-Specific Plugins for each type of sensor or actuator present
  • SmartAnthill 2.0 Protocol Stack as noted above, protocol stack is generic.

SmartAnthill Simple Device

Many of SmartAnthill Devices are expected to have very little resources, and might be unable to implement IP stack. Such devices are known as SmartAnthill Simple Devices; they implement a portion of SmartAnthill 2.0 Protocol Stack, with SmartAnthill Router providing interface to the outside world and conversion between IP-based requests/replies and Simple Device requests/replies.

SmartAnthill IP-enabled Device

SmartAnthill IP-enabled Device is a device which is able to handle IP requests itself. For example, if SmartAnthill IP-enabled Device uses IEEE 802.15.4 for communication, it may implement 6LoWPAN and IP stack with at least UDP support (TCP stack, which is more resource-intensive than UDP/IP stack, is optional for SmartAnthill IP-enabled Devices). SmartAnthill IP-enabled Devices can and should be accessed without the assistance of SmartAnthill Router.

Life Cycle of SmartAnthill Device

Let’s consider how new devices are added and used within a SmartAnthill. Life cycle is a bit different for SmartAnthill Hobbyist Device and SmartAnthill Mass-Market Device.

Life Cycle of SmartAnthill Hobbyist-Oriented Device

During it’s life within SmartAnthill, a hobbyist-oriented device goes through the following stages:

  • Initial State. Initially (when shipped to the customer), Hobbyist-oriented SmartAnthill Device doesn’t need to contain any program. Program will be generated and device will be programmed as a part of ‘Program Generation and Programming’ stage. Therefore, programming connector is a must for hobbyist-oriented devices.
  • Specifying Configuration. Configuration is specified by a user (hobbyist) using a Dashboard Service. User selects board type and then specifies connections of sensors or actuators to different pins of the board. For example, one hobbyist might specify that she has [TODO] board and has a LED connected to pin 1, a temperature sensor connected to pins 2 through 5, and a DAC connected to pins 7 to 10.
  • Program Generation and Programming. Program generation and programming is performed by SmartAnthill Firmware Builder and Uploader automagically based on configuration specified in a previous step. Generated program includes a SmartAnthill stack, credentials necessary to authenticate the device to the network and vice versa (as described in SATP section below, authentication is done via symmetric keys), and subprograms necessary to handle devices specified in a previous step. Currently SmartAnthill supports either UART-programmed devices, or SIP-programmed devices [TODO:check]

After the device is programmed, it is automatically added to a SmartAnthill Database of available devices.

  • Operation. After the device is programmed, it can start operation. Device operation involves receiving and executing commands from Central Controller. Operations can be either device-specific (such as “measure temperature and report”), or generic (such as “wait for XXXX seconds and come back for further instructions”).

Life Cycle of SmartAnthill Mass-Market-Oriented Device

Mass-market devices are expected to be shipped in already programmed state, with a pre-defined configuration. Expected life cycle of a SmartAnthill Mass-market-oriented Device can be described as follows:

  • Initial State. Initially (when shipped to the customer), SmartAnthill mass-market-oriented device contains a program which ensures it’s operation. Re-programming capability and connector are optional for SmartAnthill mass-market-oriented devices.
  • “Pairing” with Central Controller. “Pairing” includes Central Controller (controlled via SmartAnthill Dashboard) generating and exchanging credentials with device, querying device configuration and capabilities, and entering credentials, configuration and capabilities into SmartAnthill Database. “Pairing” is described in detail in SmartAnthill Pairing document.
    • Physically, “pairing” can be done in one of two different ways:
      • OtA Single-LED Pairing. Requires user to point a webcam of Central Controller (or a phone camera with SmartAnthill app running - TODO) to the Device intended to be paired. On the Device side, requires only one single LED (existing LED MAY be re-used for “pairing”)
      • Zero Paper Pairing. Requires user to enter 26-symbol key into Central Controller. On the Device side, requires printed key (unique to the Device); additionally requires Device to fullfil Reprogramming Requirements as specified in SmartAnthill Pairing.
    • Special considerations: SmartAnthill Device MUST NOT allow to extract keys; the only action allowed is to re-pair device with a different Central Controller, destroying previously existing credentials in the process. In other words, while it is possible to steal device to use with a different Central Controller, it should not be possible to impersonate device without access to Central Controller. In addition, re-pairing MUST be initiated on the Device itself (and Devices MUST NOT allow initiating re-pairing remotely); this is necessary to ensure that to hijack Device, attacker needs to be in physical possession of the Device.
  • Operation. Operation of Mass-market-oriented device is the same as operation of Hobbyist-oriented device.

SmartAnthill protocol stack

SmartAnthill protocol stack is described in detail in a separate document, SmartAnthill 2.0 Protocol Stack.
